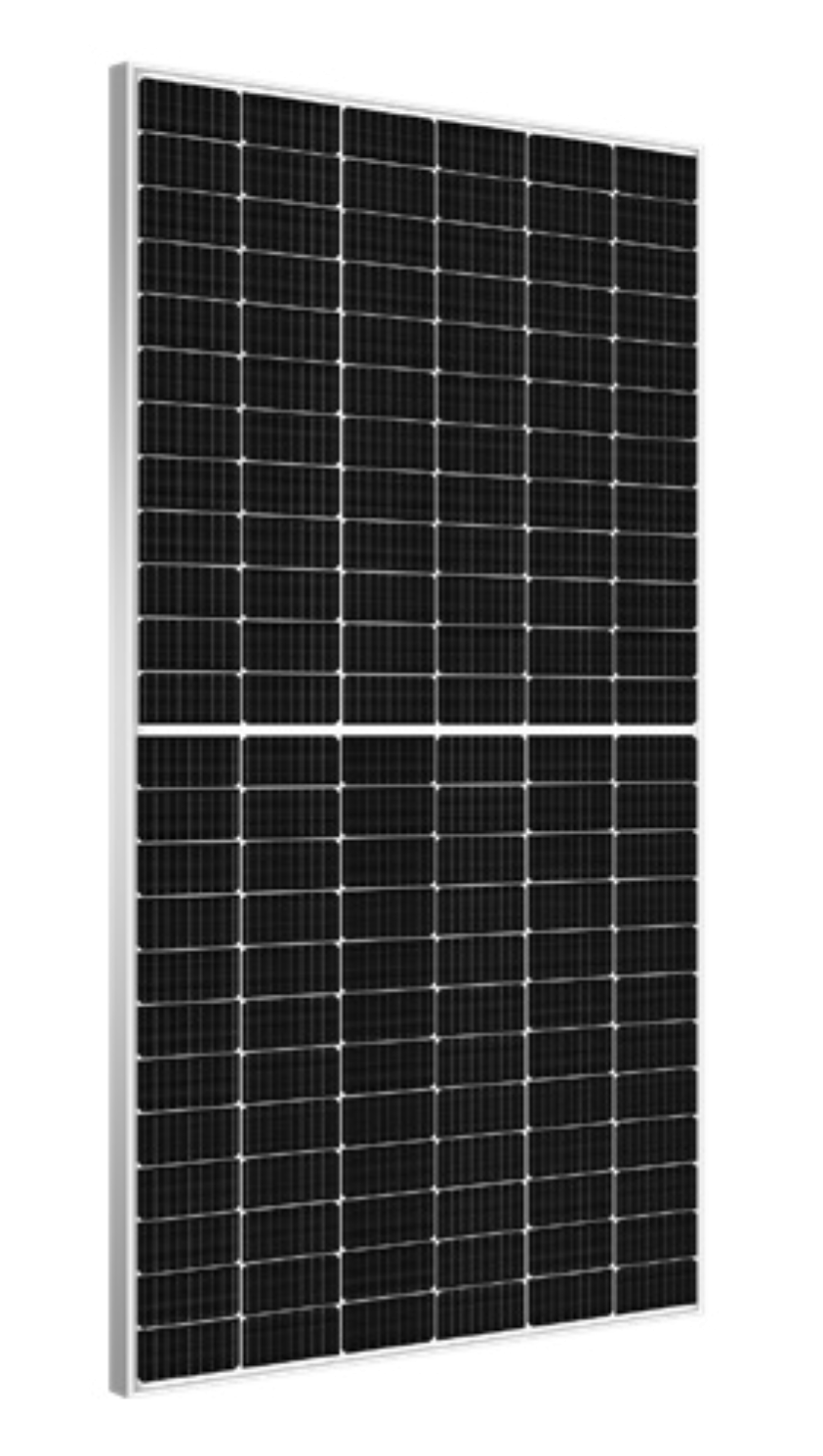

Bluesun HEX5-560W (BSM560M10-72HPH) Monofacial
Geschindeltes hocheffizientes Solarmodul

MECHANICAL SPECIFICATION

• Cell Type: Mono Perc | Monocristaline
• Cell Dimensions: 182x91mm
• Cell Arrangement: 144 (6x24)
• Weight 28.6 kg

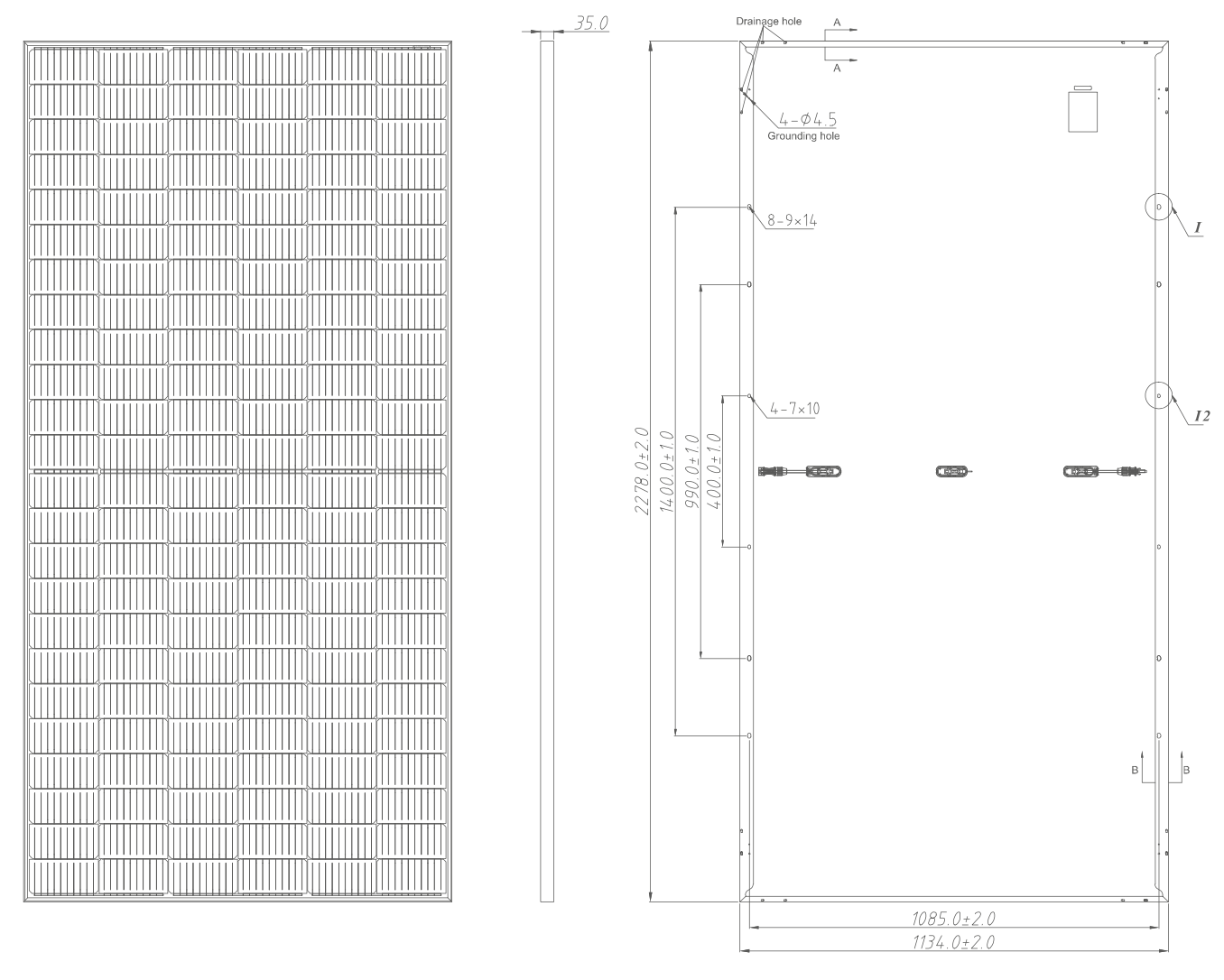

• Module Dimensions: 2278x1134x35mm
• Cable Length: Portrait 300mm/Landscape 1200mm/Customized
• Cable Cross Section Size: TUV: 4mm2 (0.006inches2 )/UL: 12AWG
• Front Glas: 3.2mm White Toughened Safety Glass
• Withstanding Hail: Maximum diameter of 25 mm with impact speed of 23 m/s-1
• Module Efficiency: 21.7%

OPERATING CONDITIONS

• Maximun System Voltage: 1000V/1500V/DC(IEC)
• Operating Temperature: -40°C~ +85°C
• Maximun Series Fuse: 25A
• Static Loading: Snow Loading: 5400Pa/ Wind Loading: 2400Pa
• Conductivity at Ground: ≤0.1Ω
• Safety Class: II
• Resistance: ≥100MΩ
• Connector: T01/LJQ-3-CSY/MC4/MC4-EVO2

Power Values STC

• Maximum Power (Pmax/W): 560
• Operating Voltage (Vmp/V): 42.33
• Operating Current (Imp/A): 13.23
• Open-Circuit Voltage (Voc/V): 50.00
• Short-Circuit Current (Isc/A): 14.14 (STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5)

Power Values NMOT

• Maximum Power (Pmax/W): 416
• Operating Voltage (Vmp/V): 38.59
• Operating Current (Imp/A): 10.80
• Open-Circuit Voltage (Voc/V): 46.49
• Short-Circuit Current (Isc/A): 11.42 (NMOT: Irradiance at 800W/m2, Ambient Temperatue 20°C, Air Mass AM1.5, Wind Speed 1m/s)

TEMPERATURE COEFFICIENT

• Temperature Coefficient Pmax: -0.36%/°C
• Temperature Coefficient Voc: -0.29%/°C
• Temperature Coefficient Isc: +0.048%/°C
• NMOT: 45±2°C

Package Infos

31 Pc per Euro Palette. For quantity discount please contact us
