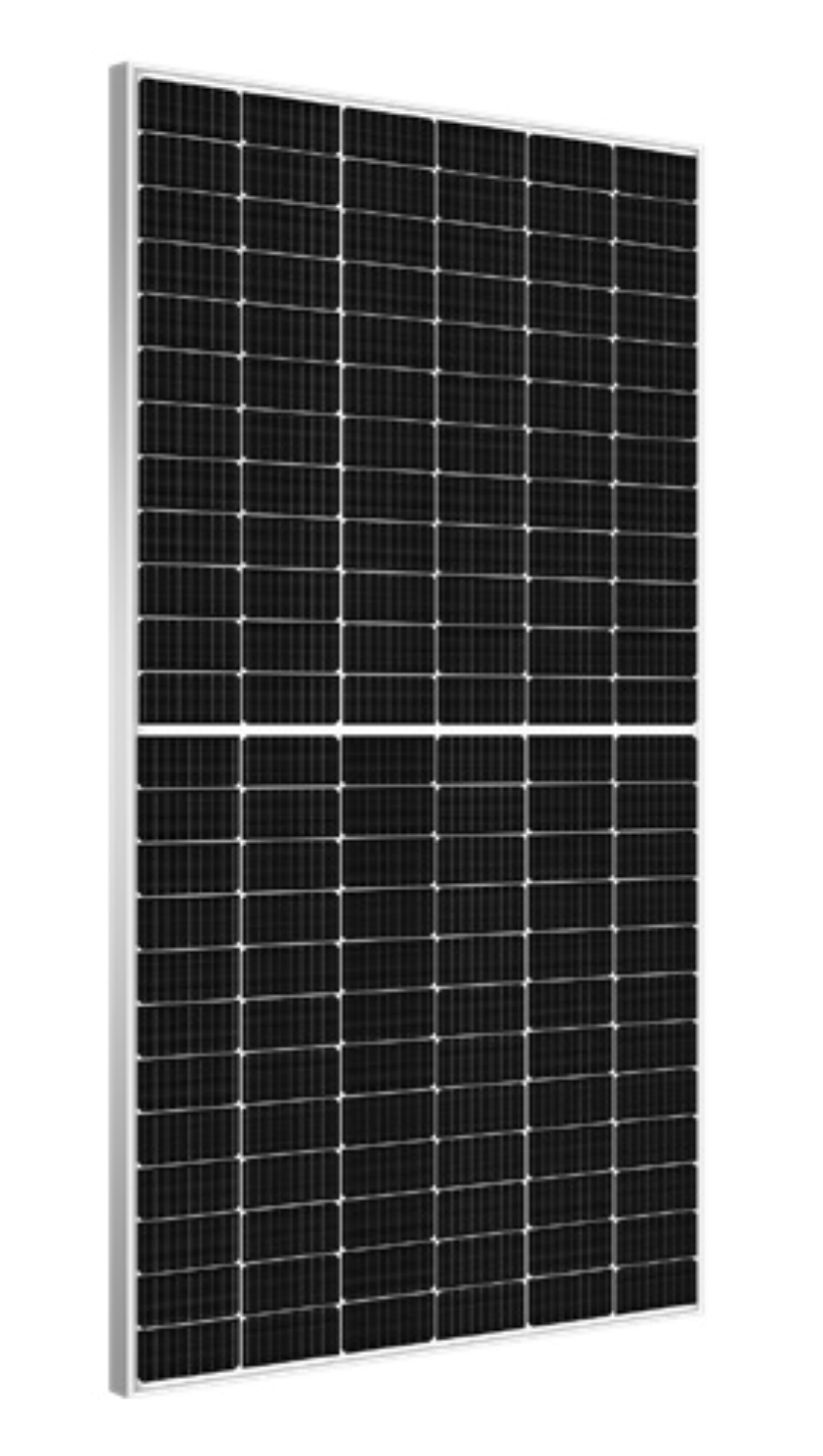

Bluesun HEX5-560W (BSM560M10-72HPH) Monofacial

Bluesun HEX5-560W (BSM560M10-72HPH) Monofacial
Shingled high efficiency solar panel

560 W power packed in easy to transport dimensions

High module conversion efficiency
Shingled cells use flexible adhesives instead of metal alloys
Withstanding harsh environment & hail
Reliable quality leads to a better sustainability even in harsh environment like desert, farm and coastline
Excellent weak light performance
More power output in weak light condition, such as cloudy, morning and sunset
Extended wind & snow load
Certified to withstand extreme wind (2400 Pa) & snow loads (5400 Pa)
Module Efficiency 21.7%
Outstanding Performance for a monocristaline Panel
Easy to Install & Handle
The Size of 2278x1134x35mm is comfortable for Installateurs

Estimated Delivery: 3-6 Days

Performance Warranty

  • 12 Years Enhanced Product Warranty on Materials and Workmanship
  • 25 Linear Power Performance Warranty
  • 0.55% Annual Degradation: Over 25 years no more than 0.55%

Management System Certificates

  • ISO 9001:2015 / Quality management system
  • ISO 14001:2015 / Standards for environmental
  • ISO 45001: 2018 / International standards for occupational health & safety

Product Certificates

  • IEC 61215 / IEC 61730 / CE

Application / Solution Design

Roof top arrays for Residential & Commercial Buildings with local restrictions for visual / environment (non flashing reflection protection) and certified for Alpine Environments.

Ideally for large scale ground installation and flat roofs for south-west arrangements.

With the optional accessory of the "iQcom Balcony Mounting Kit", also suitable for balcony & railing mountings up to 280KM/h wind speeds storm-proof.

Can be shipped as single item each, in a special custom package solution from us.

Tech specs

MECHANICAL SPECIFICATION

  • Cell Type: Mono Perc | Monocristaline
  • Cell Dimensions: 182x91mm
  • Cell Arrangement: 144 (6x24)
  • Weight 28.6 kg
  • Module Dimensions: 2278x1134x35mm
  • Cable Length: Portrait 300mm/Landscape 1200mm/Customized
  • Cable Cross Section Size: TUV: 4mm2 (0.006inches2 )/UL: 12AWG
  • Front Glas: 3.2mm White Toughened Safety Glass
  • Withstanding Hail: Maximum diameter of 25 mm with impact speed of 23 m/s-1
  • Module Efficiency: 21.7%

OPERATING CONDITIONS

  • Maximun System Voltage: 1000V/1500V/DC(IEC)
  • Operating Temperature: -40°C~ +85°C
  • Maximun Series Fuse: 25A
  • Static Loading: Snow Loading: 5400Pa/ Wind Loading: 2400Pa
  • Conductivity at Ground: ≤0.1Ω
  • Safety Class: II
  • Resistance: ≥100MΩ
  • Connector: T01/LJQ-3-CSY/MC4/MC4-EVO2

Power Values STC

  • Maximum Power (Pmax/W): 560
  • Operating Voltage (Vmp/V): 42.33
  • Operating Current (Imp/A): 13.23
  • Open-Circuit Voltage (Voc/V): 50.00
  • Short-Circuit Current (Isc/A): 14.14 (STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5)

Power Values NMOT

  • Maximum Power (Pmax/W): 416
  • Operating Voltage (Vmp/V): 38.59
  • Operating Current (Imp/A): 10.80
  • Open-Circuit Voltage (Voc/V): 46.49
  • Short-Circuit Current (Isc/A): 11.42 (NMOT: Irradiance at 800W/m2, Ambient Temperatue 20°C, Air Mass AM1.5, Wind Speed 1m/s)

TEMPERATURE COEFFICIENT

  • Temperature Coefficient Pmax: -0.36%/°C
  • Temperature Coefficient Voc: -0.29%/°C
  • Temperature Coefficient Isc: +0.048%/°C
  • NMOT: 45±2°C

Package Infos

31 Pc per Euro Palette. For quantity discount please contact us

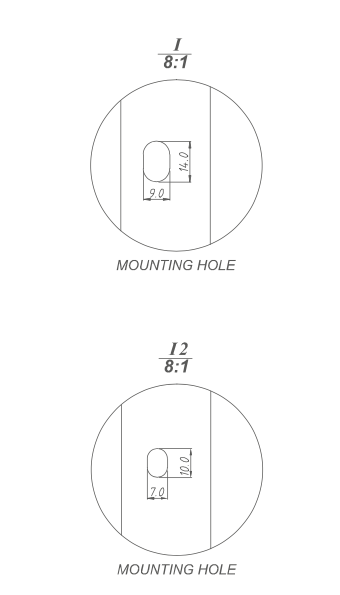

Mounting Holes

Mounting Holes
