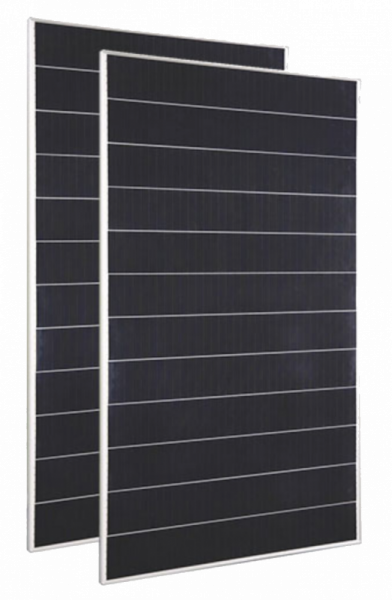

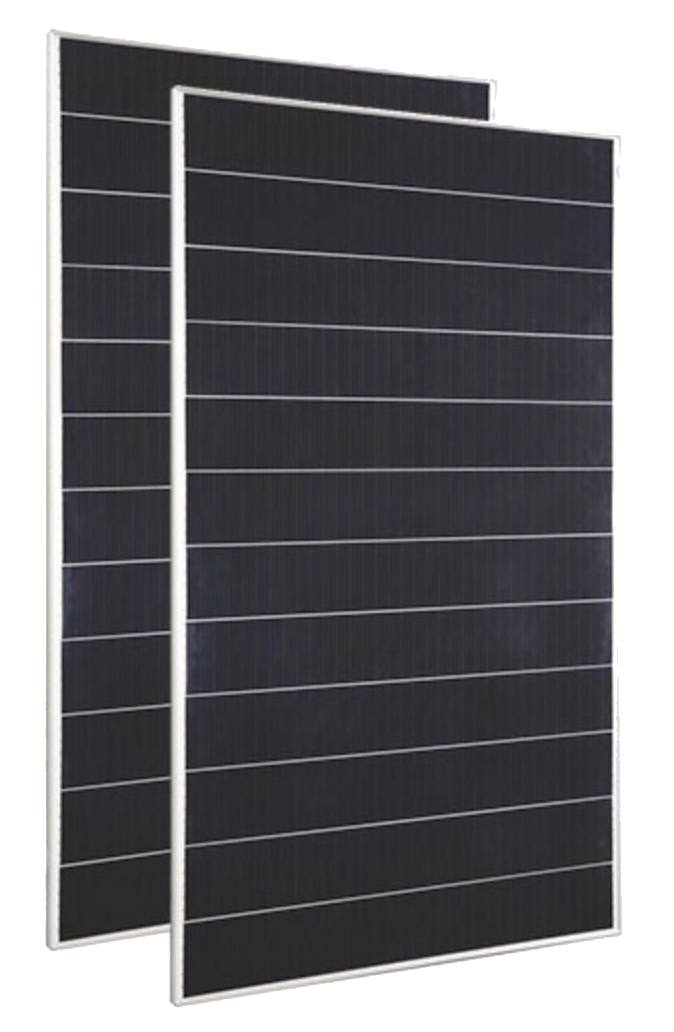

Bluesun BSM500PM572SB Shingled

Bluesun BSM500PM572SB Shingled
Shingled high efficient Solar Panel

500W Power packed in easy lifting dimensions

High module conversion efficiency
Shingled cells use flexible adhesives instead of metal alloys
Withstanding harsh environment & hail
Reliable quality leads to a better sustainability even in harsh environment like desert, farm and coastline
Excellent weak light performance
More power output in weak light condition, such as cloudy, morning and sunset
Extended wind & snow load
Certified to withstand extreme wind (2400 Pa) & snow loads (5400 Pa)
Module Efficiency 21.3%
Outstanding Performance for a monocristaline Panel
Easy to Install & Handle
The Size of 2056x1140x35mm is comfortable for Installateurs

Estimated Delivery: 3-6 Days

Performance Warranty

  • 12 Years Enhanced Product Warranty on Materials and Workmanship
  • 25 Linear Power Performance Warranty
  • 0.55% Annual Degradation: Over 25 years no more than 0.55%

Management System Certificates

  • ISO 9001:2015 / Quality management system
  • ISO 14001:2015 / Standards for environmental
  • ISO 45001: 2018 / International standards for occupational health & safety

Product Certificates

  • IEC 61215 / IEC 61730 / CE

Application / Solution Design

Roof top arrays for Residential & Commercial Buildings with local restrictions for visual / environment (non flashing reflection protection) and certified for Alpine Environments.

Ideally for large scale ground installation and flat roofs for south-west arrangements.

Tech specs

MECHANICAL SPECIFICATION

  • Cell Type: Mono Perc | Monocristaline
  • Cell Dimensions: 166x166mm
  • Cell Arrangement: 108 (6x18)
  • Weight 25kg
  • Module Dimensions: 2056x1140x35mm
  • Cable Length: Portrait 300mm/Landscape 1200mm/Customized
  • Cable Cross Section Size: TUV: 4mm2 (0.006inches2 )/UL: 12AWG
  • Front Glas: 3.2mm White Toughened Safety Glass
  • Withstanding Hail: Maximum diameter of 25 mm with impact speed of 23 m/s-1
  • Module Efficiency: 21.3%

OPERATING CONDITIONS

  • Maximun System Voltage: 1000V/1500V/DC(IEC)
  • Operating Temperature: -40°C~ +85°C
  • Maximun Series Fuse: 20A
  • Static Loading: Snow Loading: 5400Pa/ Wind Loading: 2400Pa
  • Conductivity at Ground: ≤0.1Ω
  • Safety Class: II
  • Resistance: ≥100MΩ
  • Connector: T01/LJQ-3-CSY/MC4/MC4-EVO2

TEMPERATURE COEFFICIENT

  • Temperature Coefficient Pmax: -0.34%/°C
  • Temperature Coefficient Voc: -0.24%/°C
  • Temperature Coefficient Isc: +0.04%/°C
  • NMOT: 43±2°C

Package Infos

31 Pc per Euro Palette. For quantity discount please contact us
