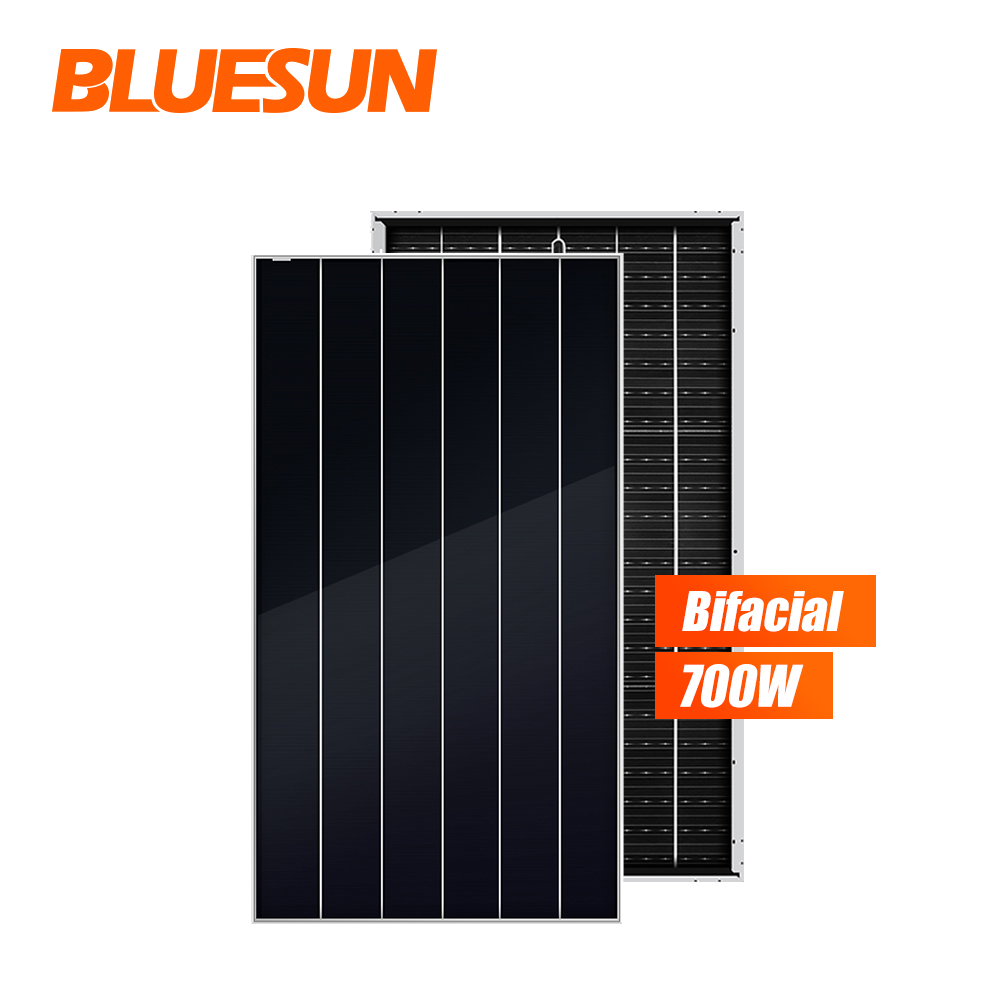

Bluesun BSM700PMB6-70SDC Shingled
Shingled HJT 700W Power

Shingled Design & Aesthetic

Shingled Technology
nnovative structure, low -temperature adhesive bonding, high-density layout
Beautiful Apperance
Uniform layout, better aesthetic. Fits in Cities & Industrial Complexes
Superior safety & Reliability
No hidden welding crack, low operating temperature, high pressure resistance
Low Shading Loss
Full parallel arrangement brings high effective power generation hours
Module efficienty 22.81
High module efficiency, reducing system cost

We start shipping: 09. Aug. 2022

Performance Warranty

  • 12 Years Enhanced Product Warranty on Materials and Workmanship
  • 25 Linear Power Performance Warranty
  • 0.55% Annual Degradation: Over 25 years no more than 0.55%

Management System Certificates

  • ISO 9001:2015 / Quality management system
  • ISO 14001:2015 / Standards for environmental
  • ISO 45001: 2018 / International standards for occupational health & safety

Product Certificates

  • IEC 61215 / IEC 61730 / CE

Application / Solution Design

Roof top arrays for Residential & Commercial Buildings without local restrictions for visual / environment (non flashing reflection protection) for aesthetic Design.

Tech specs

MECHANICAL SPECIFICATION

  • Cell Type: N-Type Monocrystalline
  • Cell Dimensions: 210x210mm
  • Cell Arrangement: 414
  • Weight: 39kg
  • Module Dimensions: 2384x1303x35mm
  • Cable Length: Portrait 300mm/Landscape 1200mm/Customized
  • Cable Cross Section Size: TUV: 4mm2 (0.006inches2 )/UL: 12AWG
  • Front Glas: 2.0 mm (0.08 inches) AR Coating Tempered Glass
  • Back Glas: 2.0mm (0.08 inches) Glazed Semi-tempered Glass
  • No. of Bypass Diodes: 3
  • Frame: Anodized Aluminium Alloy
  • Junction Box: IP68
  • Module Efficiency: 22.81%

OPERATING CONDITIONS

  • Maximun System Voltage: 1000V/1500V/DC(IEC)
  • Operating Temperature: -40°C~ +85°C
  • Maximun Series Fuse: 30A
  • Static Loading: Snow Loading: 5400Pa/ Wind Loading: 2400Pa
  • Conductivity at Ground: ≤0.1Ω
  • Safety Class: II
  • Resistance: ≥100MΩ
  • Connector: T01/LJQ-3-CSY/MC4/MC4-EVO2

TEMPERATURE COEFFICIENT

  • Temperature Coefficient Pmax: -0.35%/°C
  • Temperature Coefficient Voc: -0.26%/°C
  • Temperature Coefficient Isc: +0.048%/°C
  • NMOT: 43±2°C

Package Infos

31 Pc per Euro Palette. For quantity discount please contact us
